Model NO.：JET60B
Applications：Home Use
Power：0.37kw
HP：0.5
Max.Suct：9m
Inlet/Outlet：1′′ X 1′′
Packing Dimension：455X220X225mm
Key：Jet Water Pump

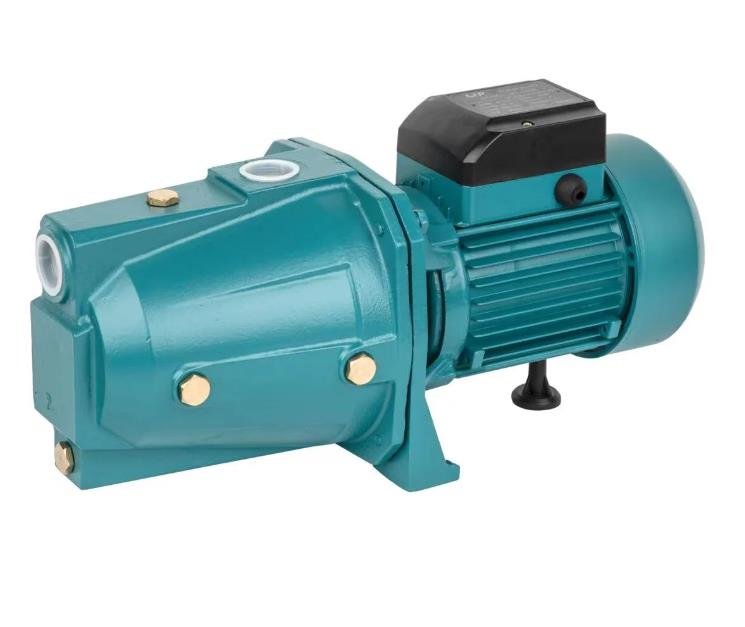

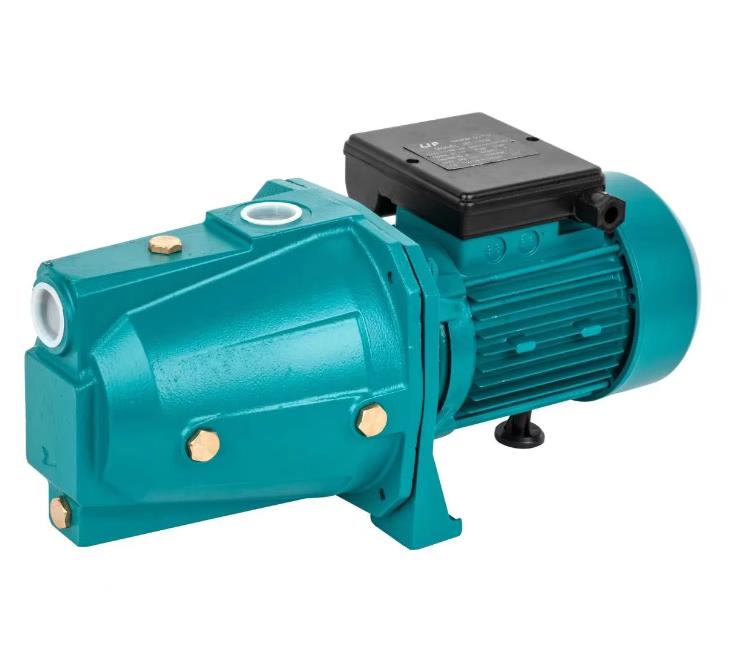

Self Priming Water Pump Copper Wire Brass Impeller Water Jet Pumps
| Product name: | JET Pump |
| Material: | 1. Pump body:Cast Iron |
| 2. Motor Support: Cast Iron | |
| 3. Impeller: Brass/Noryl | |
| 4. Shaft with rotor: 45# Carbon Steel/Stainless Steel | |
| 5. Mechanical seal: Carbon/Ceramic | |
| 6. Diffuser: Noryl | |
| Operating conditions: | 1. Max working pressure 8 bar |
| 2. Liquid temperature up to 60ºC | |
| 3. Ambient temperature up to 40ºC | |
| 4. Total suction lift to 9m | |
| 5. Continuous duty | |
| Motor: | 1. Two-Pole induction motor (n=2900r. P. M. ) |
| 2. Insulation Class: B/F | |
| 3. Protection: IP44 | |
| Application: | Family Homes,Irrigation and Agriculture,Washing and Cleaning |
PARAMETER DATA:
| Model | Power | Max. Flow(L/h) | Max.Head(m) | Max.Suct. (m) | Inlet/Outlet (inch) | G.W./N/W.(kg) | Packing size(mm) | QTY/20"CTR(pc) | |
| KW | HP | ||||||||
| JET60B | 0.37 | 0.5 | 2400 | 35 | 9 | 1"x1" | 14/13 | 455x220x225 | 1540 |
| JET80B | 0.55 | 0.75 | 3000 | 40 | 9 | 1"x1" | 15/14 | 455x220x225 | 1540 |
| JET100B | 0.75 | 1.0 | 3600 | 45 | 9 | 1"x1" | 16/15 | 455x220x225 | 125 |
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Taizhou Changhong Pump Co., Ltd. specializes in supplying various types of pumps, pressure controllers, motors, fans, air coolers, etc. There are many varieties and models of products, which are widely used in agriculture, mining, construction and industrial fields. The company is located in Daxi Town, Wenling City, Taizhou City, Zhejiang Province, China. It is close to National Highway 104 and 23 kilometers away from Taizhou Airport.
The company has strong strength, sophisticated testing equipment and perfect testing methods. Over the years, it has been producing and operating in strict accordance with the business philosophy of high quality and customer satisfaction. The products have won the praise of the public for their high quality, durability and perfect after-sales service.
Our company has also passed ISO9001 certification, CE. Now has a good reputation among customers in the Middle East, Europe, America, Africa and Latin America. We sincerely hope to establish cooperative relations with dealers, distributors and traders all over the world, mutual advantages and common development, and welcome new and old customers at home and abroad to negotiate business.
Q1. LIP PUMP is a factory or trading company?
A.We are a manufactory with more than 10 years pump production experience.
Q2. Where is your factory located?
A: Our factory is located in Daxi TownTaizhou CityZhejiang ProvinceChina.Taizhou city is close to ningbo Port.
Q3. Is OEM and ODM service available?
A: Yes.We supply flexible experience of OEM &ODM service.
Q4. What's your delivery time?
A. The sample can be sent to customer within 10~15 days.
The batch order can be shipped within 35 after receiving original L/C or TT deposit.
Q5. What are your payment terms?
A: 100%TT or irrevocable L/C at sight.
We accept 30% deposit and balance T/T against copy of Bill of Lading for repeat orders.
Q6. How about your warranty?
A.We offer 1-year product life guarantee and a generous 1-year warranty on all purchases that begin with the Bill of Lading.
Q7. How can I get some sample?
A.Sample are available.the buver is expected to cover the sample costs and freiaht.The sample costing can be deducted if you place batch order.
Q8.: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.
Q9: Do you have any certification?
A:YesCE &ISO9001 can be providedif customer need special certification for custom clearance we can also provide.
