Product name:JS Series Stainless-Steel Self-Priming JET Pump for garden
Horsepower:0.5~1.0HP
Model Number:JS Series
Material:Copper wire,brass impeller,Aluminum casting,Stainless-Steel body
Voltage:110V/60Hz;220V/5Hz
Other:Min. Order: 100 Pieces

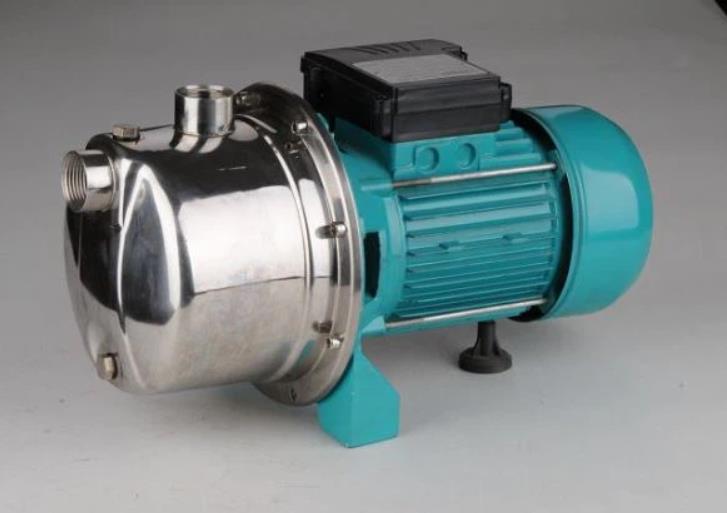

JS Series stainless steel electric self-priming jet booster pump
Details
Brand name:LIP/OEM
Place of Origin:Zhejiang, China
Standard or Nonstandard:Standard
COLOR:ACCORDING TO CUSTOMER'S CHOICE
CERTFICATION:CE//ISO9001
Usage:Water
Power:Electric
Pressure:High Pressure
Application:WATER
Fuel:ELECTRICITY
Application
Clean water without abrasive particles/Non-aggressive liquid Domestic use In particular for delivery water in combination with small pressure sets and for irrigation Installed in enclosed places,or at least protected against inclement weather.
OPEAATION CONDITIONS
● Liquid temperature up to +60 ℃
● Ambient temperature up to +40 ℃
● Suction lift up to 9 mt
● Continuous Duty
MOTOR
● 2 pole Induction motor
● 220v~240v/50HZ or on request
● Insulation : Class B
● Protection: IP44
● With thermal protector
MATERIAL
Pump body: Cast Iron
Motor housing: Aluminum
Impeller: Brass
Motor winding: Copper
Motor shaft: Stainless Steel/Carbon steel
Mechanical seal: Ceramic-graphite
Technical data
Motor | Power | Max.Flow | Max.Head | Max,Suct | In/outlet | DIM | Weight | |
Single phase | KW | HP | l/min | m | m | inch | mm | KG |
JS60 | 0.37 | 0.5 | 45 | 35 | 9 | 1"*1" | 383*225*230 | 7.3 |
JS80 | 0.6 | 0.8 | 50 | 47 | 9 | 1"*1" | 385*225*230 | 8 |
JS100 | 0.75 | 1 | 50 | 50 | 9 | 1"*1" | 385*225*230 | 9 |
