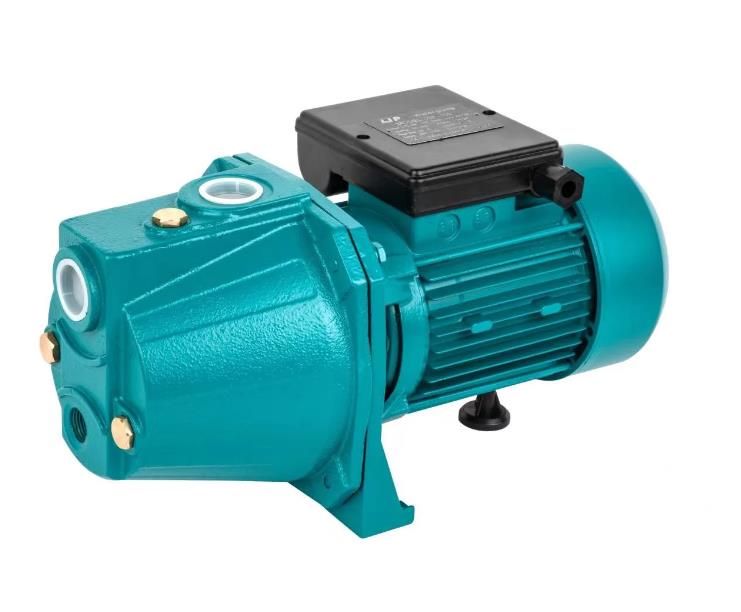

JETS Series big suction deep wells jet water pump
Operating conditions:
1. Max working pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift to 9m
5. Continuous duty
Motor:
1. Two-Pole induction motor (n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IP44
Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl
4. Diffuser: Noryl
5. Shaft with rotor: 45# Carbon Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
PARAMETER DATA:
Model | Power | Max. Flow(L/h) | Max.Head(m) | Max.Suct. (m) | Inlet/Outlet (inch) | G.W./N/W.(kg) | Packing size(mm) | QTY/20”CTR(pc) |
KW | HP |
JET60S | 0.37 | 0.5 | 2400 | 35 | 9 | 1”x1” | 14/13 | 455x220x225 | 1540 |
JET80S | 0.55 | 0.75 | 3000 | 40 | 9 | 1”x1” | 15/14 | 455x220x225 | 1540 |
JET100S | 0.75 | 1.0 | 3600 | 45 | 9 | 1”x1” | 16/15 | 455x220x225 | 125 |
