ZJET Series

Model NO.:ZJET250
Power:Electric
Start Up:Electric Pump
Type:Self Priming Pump
Application:Water Pump
Industry:Water Pump
Media:Clean Water
Performance:Water Pump
Theory:Centrifugal Pump
Horsepower:0.3HP
Voltage:110V/60Hz,220V/50Hz
Pressure:3bar, Hight Pressure

Inquiry Now

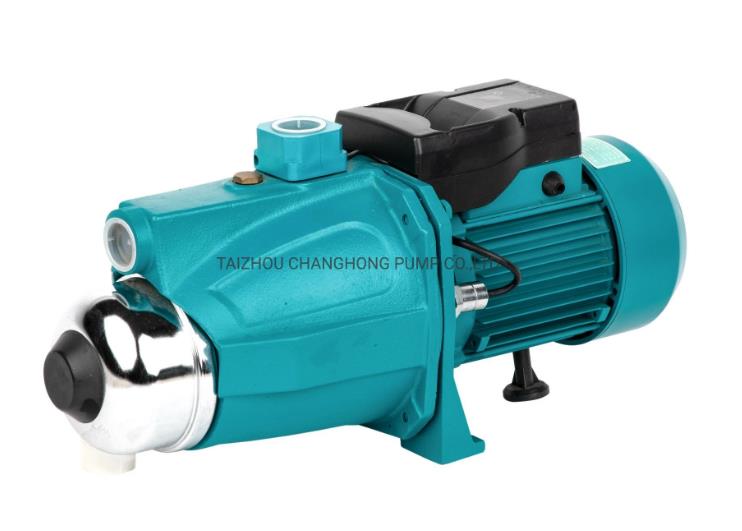

Single Phase Surface Automatic ZJET series Electric Self priming jet water pumps with tank



Operating conditions:1. Max working pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift to 9m
5. Continuous duty
Motor:1. Two-Pole induction motor (n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IP44
Material:1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl/Stainless steel
4. Diffuser: Noryl
5. Shaft with rotor: 45# Carbon Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic

Single Phase Surface Automatic Zjet Series Electric Self Priming Jet Water Pumps with Tank
PARAMETER DATA:

ModelPowerMax. Flow
(L
m3h)
Max.Head
(m)
Max.Suct.
 (m)
Inlet/Outlet
  (inch)
G.W./N/W.
(kg)
Packing size
(mm)
QTY/20"CTR
(pc)
KWHP
ZJET1501.11.52.74591"x1"16/15455x220x2251540
ZJET1801.523.66091"x1"17/16455x220x2251540
ZJET2002.234.27091"x1"18/17455x220x2251542


Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
Single Phase Surface Automatic Zjet Series Electric Self Priming Jet Water Pumps with Tank
Single Phase Surface Automatic Zjet Series Electric Self Priming Jet Water Pumps with Tank
Single Phase Surface Automatic Zjet Series Electric Self Priming Jet Water Pumps with Tank
Taizhou Changhong Pump Co., Ltd. specializes in supplying various types of pumps, pressure controllers, motors, fans, air coolers, etc. There are many varieties and models of products, which are widely used in agriculture, mining, construction and industrial fields. The company is located in Daxi Town, Wenling City, Taizhou City, Zhejiang Province, China. It is close to National Highway 104 and 23 kilometers away from Taizhou Airport.

The company has strong strength, sophisticated testing equipment and perfect testing methods. Over the years, it has been producing and operating in strict accordance with the business philosophy of high quality and customer satisfaction. The products have won the praise of the public for their high quality, durability and perfect after-sales service.

Our company has also passed ISO9001 certification, CE. Now has a good reputation among customers in the Middle East, Europe, America, Africa and Latin America. We sincerely hope to establish cooperative relations with dealers, distributors and traders all over the world, mutual advantages and common development, and welcome new and old customers at home and abroad to negotiate business.


Single Phase Surface Automatic Zjet Series Electric Self Priming Jet Water Pumps with TankSingle Phase Surface Automatic Zjet Series Electric Self Priming Jet Water Pumps with TankSingle Phase Surface Automatic Zjet Series Electric Self Priming Jet Water Pumps with TankSingle Phase Surface Automatic Zjet Series Electric Self Priming Jet Water Pumps with Tank
Q1. LIP PUMP is a factory or trading company?
A.We are a manufactory with more than 10 years pump production experience.

Q2. Where is your factory located?
A: Our factory is located in Daxi TownTaizhou CityZhejiang ProvinceChina.Taizhou city is close to ningbo Port.

Q3. Is OEM and ODM service available?
A: Yes.We supply flexible experience of OEM &ODM service.

Q4. What's your delivery time?
A. The sample can be sent to customer within 10~15 days.
The batch order can be shipped within 35 after receiving original L/C or TT deposit.

Q5. What are your payment terms?
A: 100%TT or irrevocable L/C at sight.
We accept 30% deposit and balance T/T against copy of Bill of Lading for repeat orders.

Q6. How about your warranty?
A.We offer 1-year product life guarantee and a generous 1-year warranty on all purchases that begin with the Bill of Lading.

Q7. How can I get some sample?
A.Sample are available.the buver is expected to cover the sample costs and freiaht.The sample costing can be deducted if you place batch order.

Q8.: What is your company's available production capacity?
A: 50000~60000 pieces of pump per month.

Q9: Do you have any certification?
A:YesCE &ISO9001 can be providedif customer need special certification for custom clearance we can also provide.
