Brand name:LIP/OEM
Place of Origin:Zhejiang, China
Standard or Nonstandard:Standard
COLOR:ACCORDING TO CUSTOMER'S CHOICE

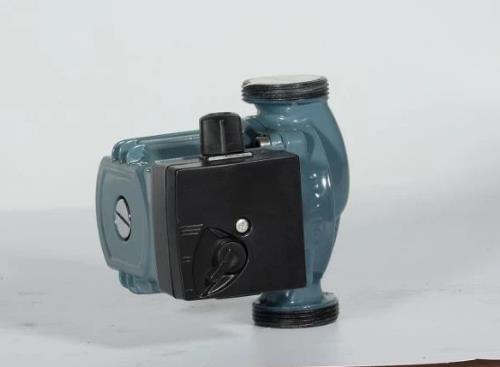

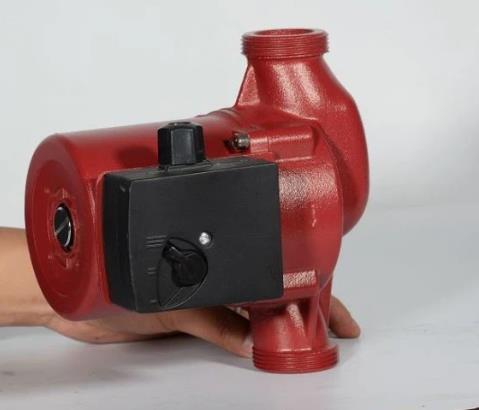

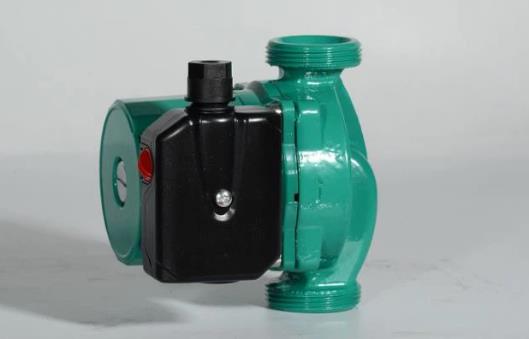

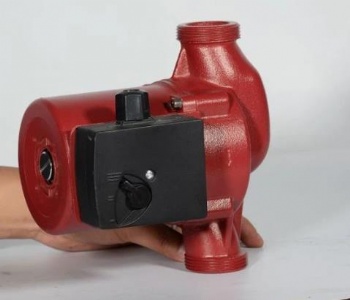

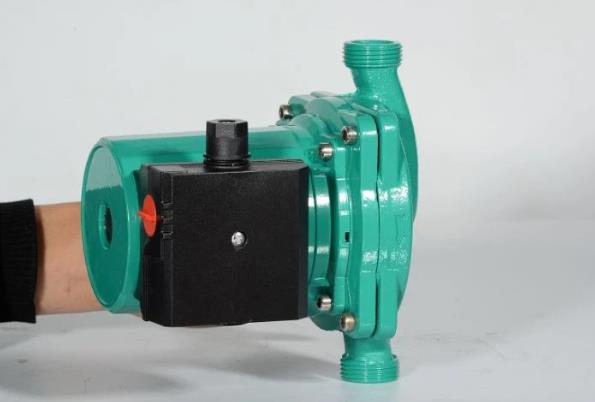

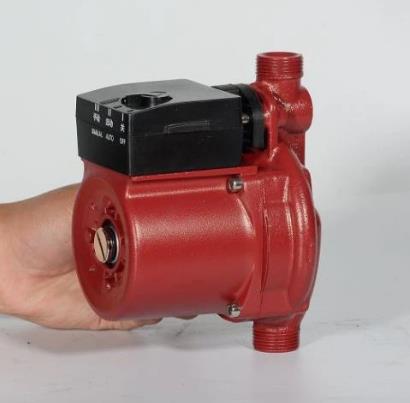

RS Circulation pump hot water heating system for Domestic use
Details
Brand name:LIP/OEM
Place of Origin:Zhejiang, China
Standard or Nonstandard:Standard
COLOR:ACCORDING TO CUSTOMER'S CHOICE
CERTFICATION:CE//ISO9001
Usage:Water
Power:Electric
Pressure:High Pressure
Application:WATER
Fuel:ELECTRICITY
Application
This pump is mainly for home using,It is widely used in hot water heating system. It's has 3-speed control to change the speed the user can change the speed under differennt circumstance it can be also installed with automatic switch which adopts electronics theory, controlled by water current.
When the tap is on, and turned off when the tap is off. Its PA66 impeller and stainless steel shaft are corrosion-resistant. The whole pump is sleaed well and convery water won't be unhealty. It's used conveniently and slao save power.
OPERATION CONDITIONS
● Liquid temperature range -10℃ to 110℃
● Max.working pressure 10bar
● Manual 3-speed control
● Non-overloading single phase motor
● Suitable for heating water, water/glcol mixtures max.mixing ratio,1.1
Material
Pump body: special anti-rust cast iron
Motor support: Alumina
Impeller: brass
Motor shaft: 304Stainless Steel or CS45#
Mechanical seal: Ceramic-Graphite
Motor winding: 100%Copper
Motor
2 Pole induction motor
Single-phase,50 or 60 Hz
Technical data
Model | Power(w) | Max.Flow(L/min) | Max.Head | In/outlet(inch) | Weight(kg) | QTY CTN | CTN Dim (mm) | remark |
RS15/4G | 72 | 36 | 4.5 | 1” | 2.2 | 8 | 35*28*29 | 3-speed |
53 | 29 | 4 | ||||||
38 | 20 | 3 | ||||||
RS25/4G | 72 | 48 | 4.5 | 1½” | 2.3 | 8 | 35*28*29 | 3-speed |
53 | 36 | 4 | ||||||
38 | 22 | 3 | ||||||
RS32/4G | 72 | 50 | 4.5 | 2 | 2.4 | 8 | 35*28*29 | 3-speed |
53 | 38 | 4 | ||||||
38 | 24 | 3 | ||||||
RS12/6G | 93 | 38 | 6 | 3/4” | 2.2 | 8 | 35*28*29 | 3-speed |
67 | 25 | 5 | ||||||
46 | 20 | 3 | ||||||
RS15/6G | 93 | 40 | 6 | 1” | 2.2 | 8 | 35*28*29 | 3-speed |
67 | 28 | 5 | ||||||
46 | 20 | 3 | ||||||
RS20/6G | 93 | 53 | 6 | 1¼” | 2.2 | 8 | 35*28*29 | 3-speed |
67 | 35 | 5 | ||||||
46 | 21 | 3 | ||||||
RS25/6G | 93 | 58 | 6 | 1½” | 2.2 | 8 | 35*28*29 | 3-speed |
67 | 45 | 5 | ||||||
46 | 27 | 3 | ||||||
RS25/7G | 135 | 65 | 7 | 1½” | 2.8 | 8 | 41.5*28*39 | 3-speed |
93 | 44 | 6.5 | ||||||
67 | 22 | 4.5 | ||||||
RS32/7G | 135 | 65 | 7 | 2” | 2.8 | 8 | 41.5*28*39 | 3-speed |
93 | 44 | 6.5 | ||||||
67 | 22 | 4.5 | ||||||
RS15/8 | 165 | 65 | 8 | 1” | 3.3 | 38*33*19.5 | 3-speed | |
115 | 42 | 7 | ||||||
75 | 22 | 5 | ||||||
RS25/8 | 165 | 80 | 8 | 1½” | 3.8 | 4 | 38*33*19.5 | 3-speed |
115 | 48 | 7 | ||||||
75 | 25 | 5 | ||||||
RS32/8 | 270 | 160 | 8 | 2” | 5 | 4 | 38*33*19.5 | 3-speed |
210 | 103 | 7.5 | ||||||
150 | 43 | 6.5 | ||||||
RS20/11 | 165 | 35 | 11 | 1” | 3.8 | 4 | 38*33*19.5 | 3-speed |
115 | 20 | 7 | ||||||
75 | 10 | 2.4 | ||||||
RS20/12G | 245 | 53 | 12 | 1” | 4.2 | 4 | 38*33*19.5 | 3-speed |
220 | 32 | 11 | ||||||
145 | 22 | 7 | ||||||
RS25/12G | 245 | 53 | 12 | 1½” | 4.5 | 4 | 38*33*19.5 | 3-speed |
220 | 32 | 11 | ||||||
145 | 22 | 7 | ||||||
RS25/15G | 270 | 68 | 14 | 1½” | 4.9 | 4 | 38*33*19.5 | 3-speed |
210 | 46 | 13 | ||||||
150 | 28 | 10 |
