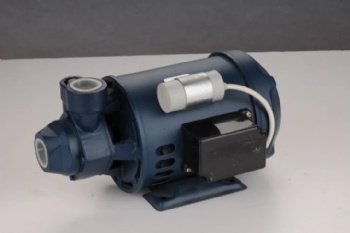

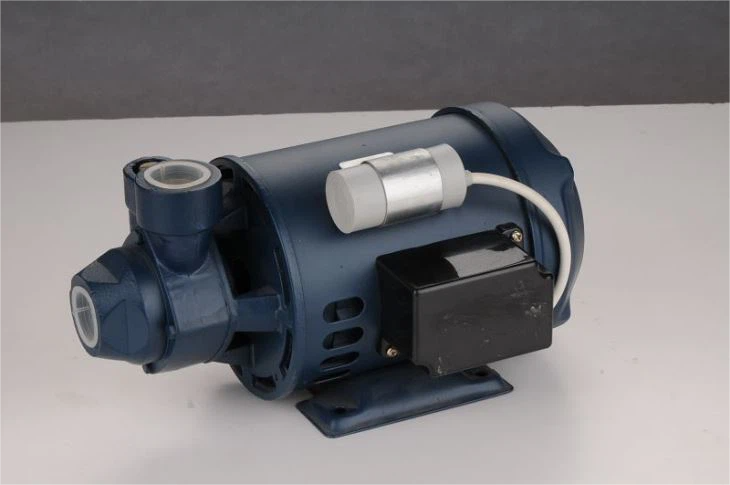

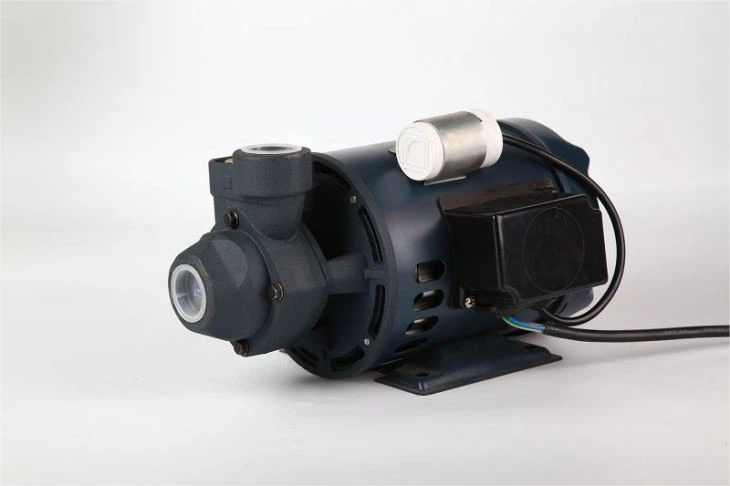

PM16A 0.5hp household water pump


Application

Volumetric water pump able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves.

They are qualified in domestic fittings, to increase the system pressure aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. for the correct function of the pump, use clean water or non-aggressive liquid only. without sand or other solid impurity


Material

pump body: special anti-rust cast iron

Motor support: Steel

Impeller: brass

Motor shaft: 304Stainless Steel or CS45#

Mechanical seal: Ceramic-Graphite

Motor winding: 100%Copper


Motor

2 Pole induction motor

Single-phase,50 or 60 Hz

Protection IP 44

With capacitor and thermal overload protection


Performance Curve(n at 2850r/min)

CP130 0.5hp household clean water pump

Technical data

Model

Power(kw)

Max.Flow(L/min)

In/outlet(inch)

Dim(mm)

Weight(kg)

PM16A

0.37

35

1''*1''

290*140*170

6
