Product name：HCT-S Stainless Steel Pump Body Surface Centrifugal Pump For Agricultural
Horsepower：370W/550W/750W/1500W/2200W
Model Number：HCT Series
Material：Copper wire,brass impeller,Aluminum casting,Stainless steel pump body
Voltage：220v/50hz/110v/60hz
Other：Min. Order: 100 Pieces

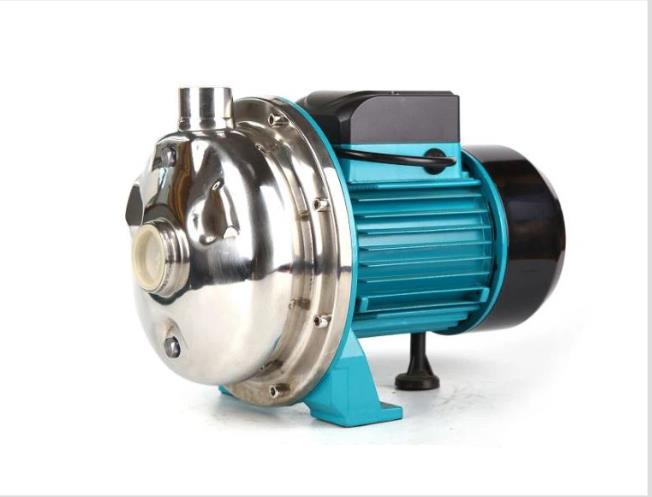

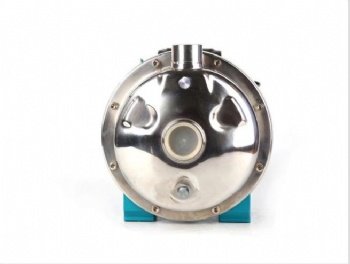

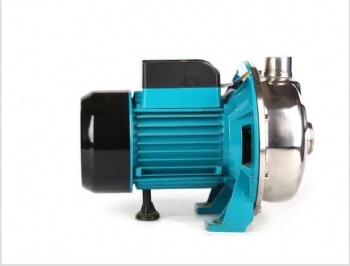

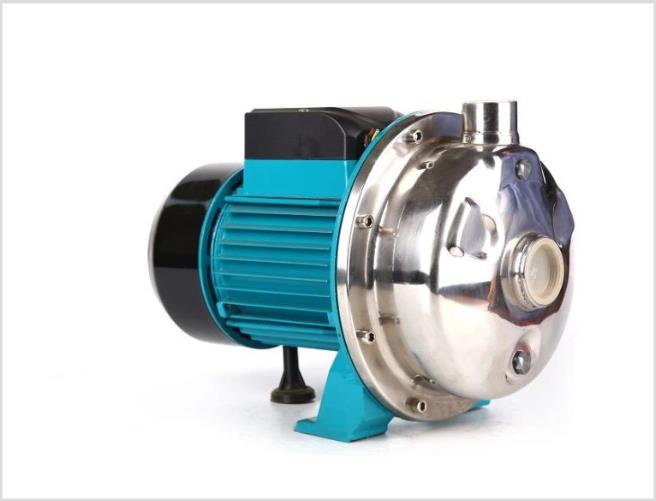

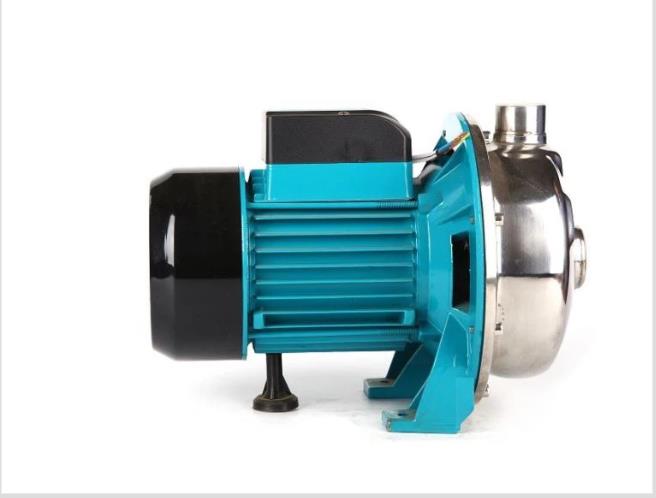

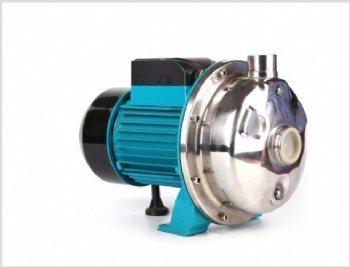

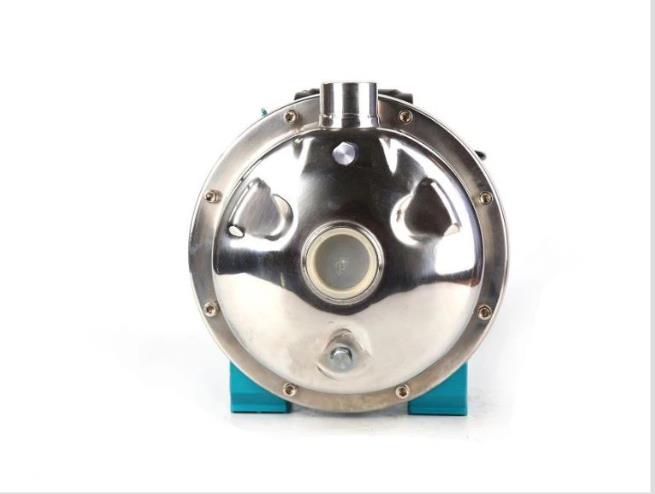

HCT-S series stainless steel centrifugal water pump
1. Max working pressure 8 bar
2. Liquid temperature up to 60℃
3. Ambient temperature up to 40℃
4. Total suction lift to 9m
5. Continuous duty
Motor:
1. Two-Pole induction motor (n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IP44
Material:
1. Pump body: Stainless steel
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl
4. Diffuser: Noryl
5. Shaft with rotor: 45# Carbon Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.
-Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.
-To be used in flow irrigation systems in gardening and agriculture and industrial fittings
PARAMETER DATA:
Model | Power kw | POWER hp | Max.head (m) | Max.flow (L/min) | Max.suct ( m ) | Inlet/Outlet | Packing dimension (mm) |
| HCT-18S | 0.37 | 0.5 | 18 | 140 | 9 | 1.25’’ X 1’’ | 340x235x265 |
| HCT-20S | 0.55 | 0.75 | 20 | 145 | 9 | 1.25’’ X 1’’ | 340x235x265 |
| HCT-26S | 0.75 | 1 | 26 | 150 | 9 | 1.25’’ X 1’’ | 340x235x265 |
| HCT-30S | 1.1 | 1.5 | 30 | 215 | 9 | 1.25’’ X 1’’ | 370x240X265 |
| HCT-33S | 1.5 | 2 | 33 | 250 | 9 | 1.25’’ X 1’’ | 370x240X265 |
